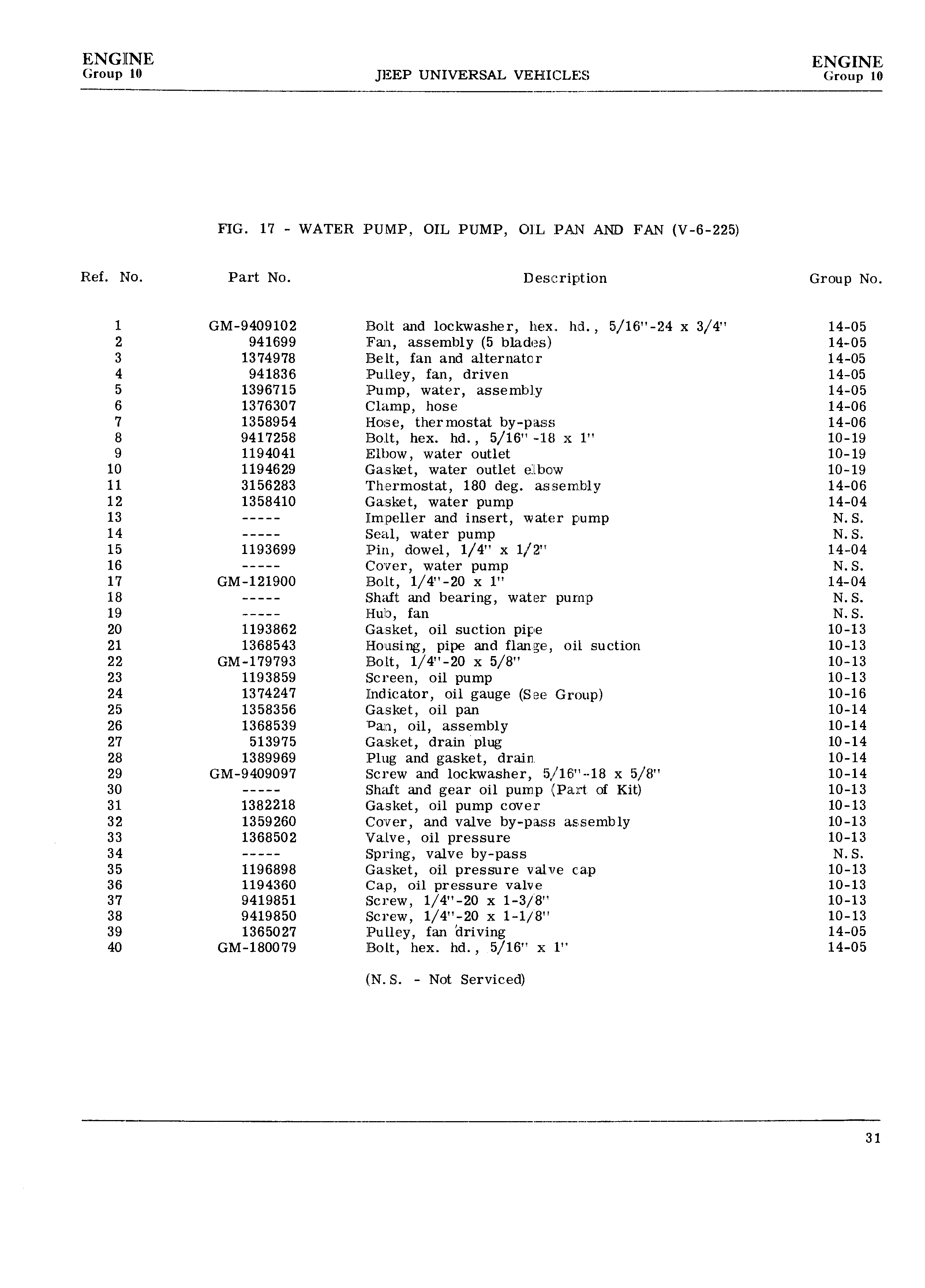

ENGllNE ENGINE Group 10 JEEP UNIVERSAL VEHICLES Group 10 FIG 17 WATER PUMP OIL PUMP OIL PAN AND FAN V 6 225 Ref N0 Part No Deslsription Group No 1 GM 9409102 lBo lt and lockwasher hex hd 5 16 24 x 3 4 14 05 2 941699 Pan assembly 5 blades 14 05 3 1374978 Belt fan and alternator 14 05 4 941836 Pulley fan driven 14 05 5 1396715 Pump water assembly 14 05 6 1376307 Clamp hose 14 06 7 1358954 Hose thermostat by pass 14 06 8 9417258 Bolt hex hd 5 16 18 x 1 10 19 9 1194041 Elbow water outlet 10 19 10 1194629 Gasket water outlet elbow 10 19 11 3156283 Thermostat 180 deg assembly 14 06 12 1358410 Gasket water pump 14 04 13 llmpeller and insert water pump N S 14 Seal water pump N S 15 1193699 Pin dowel 1 4 x 1 Z2 14 04 16 Cover water pump N S 17 GM 121900 lBolt 1 4 20 x 1 14 04 18 Shaft and bearing water pump N S 19 Hub fan N S 20 1193862 Gasket oil suction pipe 10 13 21 1368543 Housing pipe and flange oil suction 10 13 22 GM 179793 Bolt 1 4 20 x 5 8 10 13 23 1193859 Screen oil pump 10 13 24 1374247 llndicator oil gauge See Group 10 16 25 1358356 Gasket oil pan 10 14 26 1368539 Pan oil assembly 10 14 27 513975 Gasket drain plug 10 14 28 1389969 Plug and gasket drain 10 14 29 GM 9409097 Screw and lockwasher 5 1Ei 18 x 5 8 10 14 30 Shaft and gear oil pump Part of Kit 10 13 31 1382218 Gasket oil pump cover 10 13 32 1359260 Cover and valve by pass assembly 10 13 33 1368502 Valve oil pressure 10 13 34 Spring valve by pass N S 35 1196898 Gasket oil pressure valve cap 10 13 36 1194360 Cap oil pressure valve 10 13 37 9419851 Screw 1 4 2O x 1 3 8 10 13 38 9419850 Screw 1 4 20 x 1 1 8 10 13 39 1365027 Pulley fan driving 14 05 40 GM 180079 lB0lt hex hd 5 16 x 1 14 05 N S Not Serviced 31
