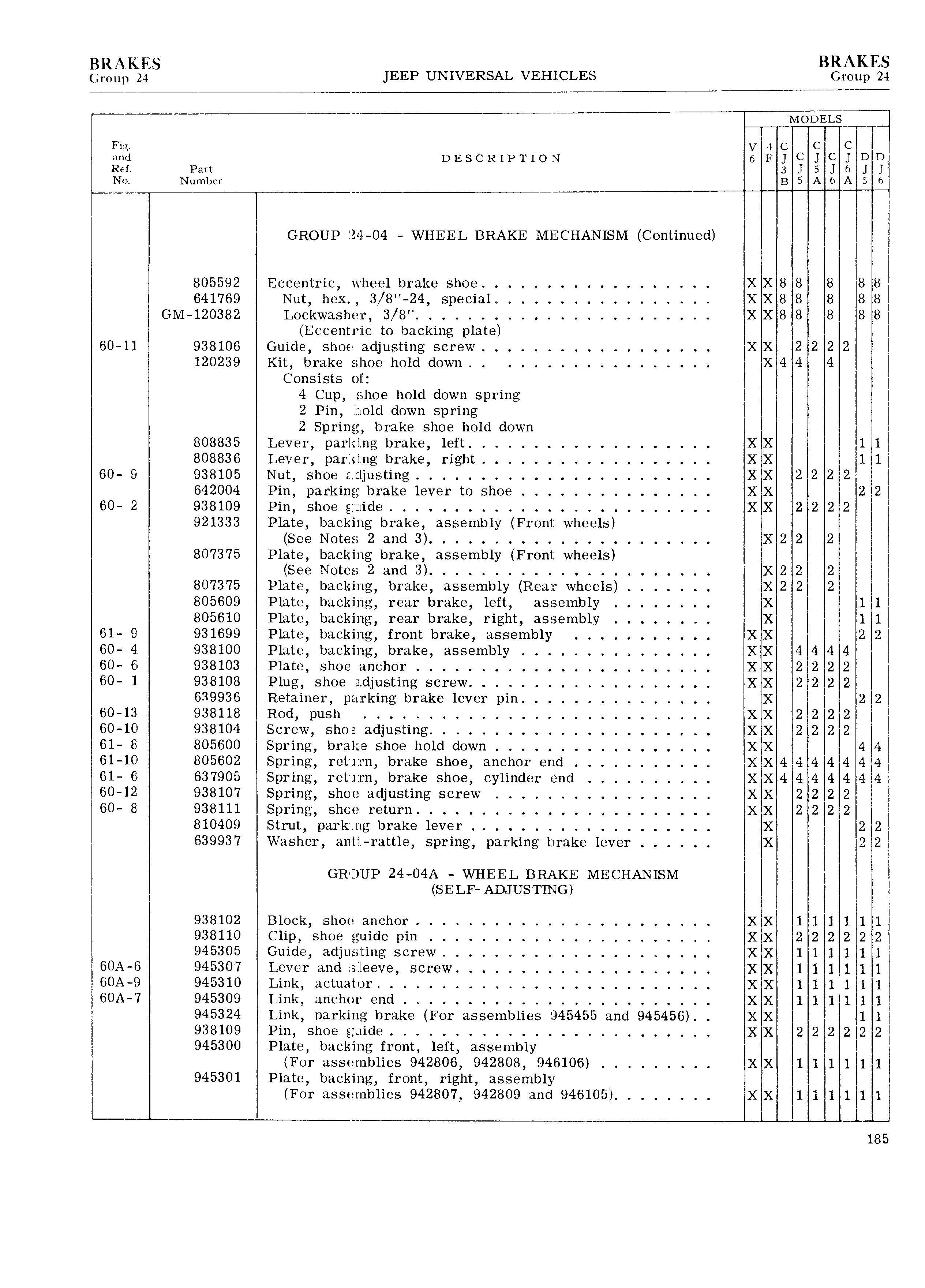

BRAKES BRAKES iroup 24 E EP UNIVERSAL VEHICLES Group 24 W MODELS Fig v 4 c C C and DESCRIPTION 6 FJCJCJDD Ref Pm 3 J 5 J 6 J J No Number B 5 A 6 A 5 6 GROUP 1224 04 WHEEL BRAKE MECHANISM Continued I 805592 Eccentric wheel brake shoe X X 8 8 8 8 8 641769 Nut hex 3 8 24 special J X X 8 8 8 8 8 GM 120382 Lockwashor 3 lit X X 8 8 8 8 8 Eccentric to backing plate 60 11 938106 Guide shoe adjusting screw X X 2 2 2 2 120239 Kit brake shoe hold down X 4 4 4 Consists of 4 Cup shoe hold down spring 2 Pin hold down spring 2 Spring brake shoe hold down 808835 Lever park ing brake left X X 1 1 I 808836 Lever parking brake right X X 1 1 60 9 938105 Nut shoe arljustingj X X 2 2 2 2 I 642004 Pin parking brake lever to shoe i X X 2 2 60 2 938109 Pin shoe guide J X X 2 2 2 2 921333 Plate backing brake assembly Front wheels See Notes 2 and 3 X 2 2 2 I 807375 Plate backing brake assembly Front wheels I See Notes 2 and 3 X 2 2 2 807375 Plate backing brake assembly Rear wheels X 2 2 2 805609 Plate backing rear brake left assembly X 1 1I 805610 Plate backing rear brake right assembly X 1 1 61 9 931699 Plate backing front brake assembly X X 2 2 60 4 938100 Plate backing brake assembly X X 4 4 4 4 60 6 938103 Plate shoe anchor X X 2 2 2 2 60 1 938108 Plug shoe adjusting screw X X 2 2 2 2 I 639936 Retainer parking brake lever pin X 2 2 I 60 13 938118 Rod push i XX 2 2 2 2 60 10 938104 Screw shoe adjusting X X 2 2 2 2 61 8 805600 Spring brake shoe hold down X X 4 4 61 10 805602 Spring return brake shoe anchor end X X 4 4 4 4 4 4 4 61 6 637905 Spring return brake shoe cylinder end X X 4 4 4 4 4 4 4 60 12 938107 Spring shoe adjusting screw X X 2 2 2 2 60 8 938111 Spring shoe return X X 2 2 2 2 810409 Strut parking brake lever X 2 2 639937 Washer anti rattle spring parking brake lever X 2 2 GROUP 24 04A WHEEL BRAKE MECHANISM I I SELF ADJUSTTNG I I 938102 Block shoe anchor XX 1 1 1 1 1 1 938110 Clip shoe guide pin X X 2 2 2 2 2 2 945305 Guide adjusting screw X X 1 1 1 1 1 1 60 4 6 945307 Lever and sleeve screw X X 1 1 1 1 1 1 60A 9 945310 Link actuator X X 1 1 1 1 1 1I 60A 7 945309 Link anchor end XX 1 1 1 1 1 1 945324 Link parking brake For assemblies 945455 and 945456 X X 1 1 I 938109 Pin shoe guide X X 2 2 2 2 2 2I 945300 Plate backing front left assembly I For assemblies 942806 942808 946106 XX 1 1 1 1 1 1I 945301 Plate backing front right assembly For assernblies 942807 942809 and 946105 X X 1 1 1 1 it I 185
